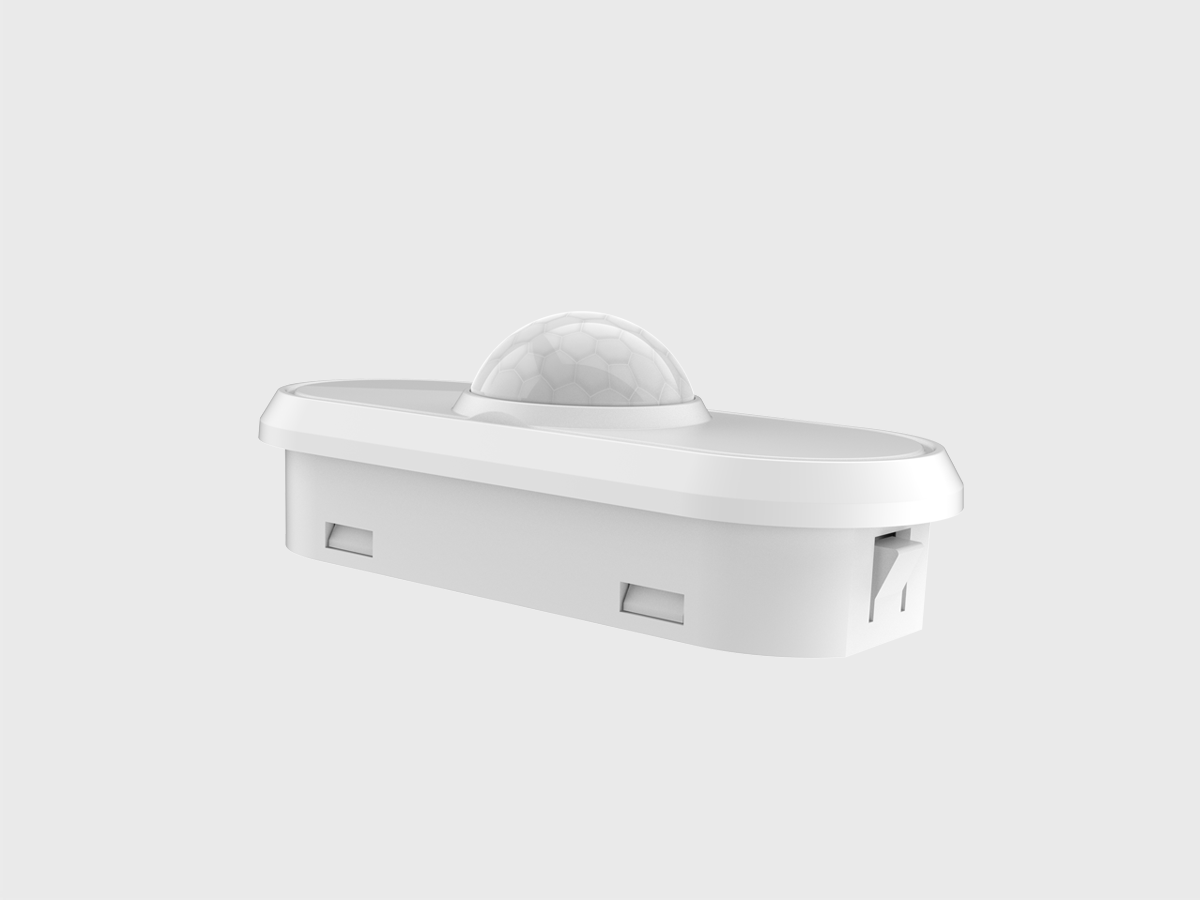

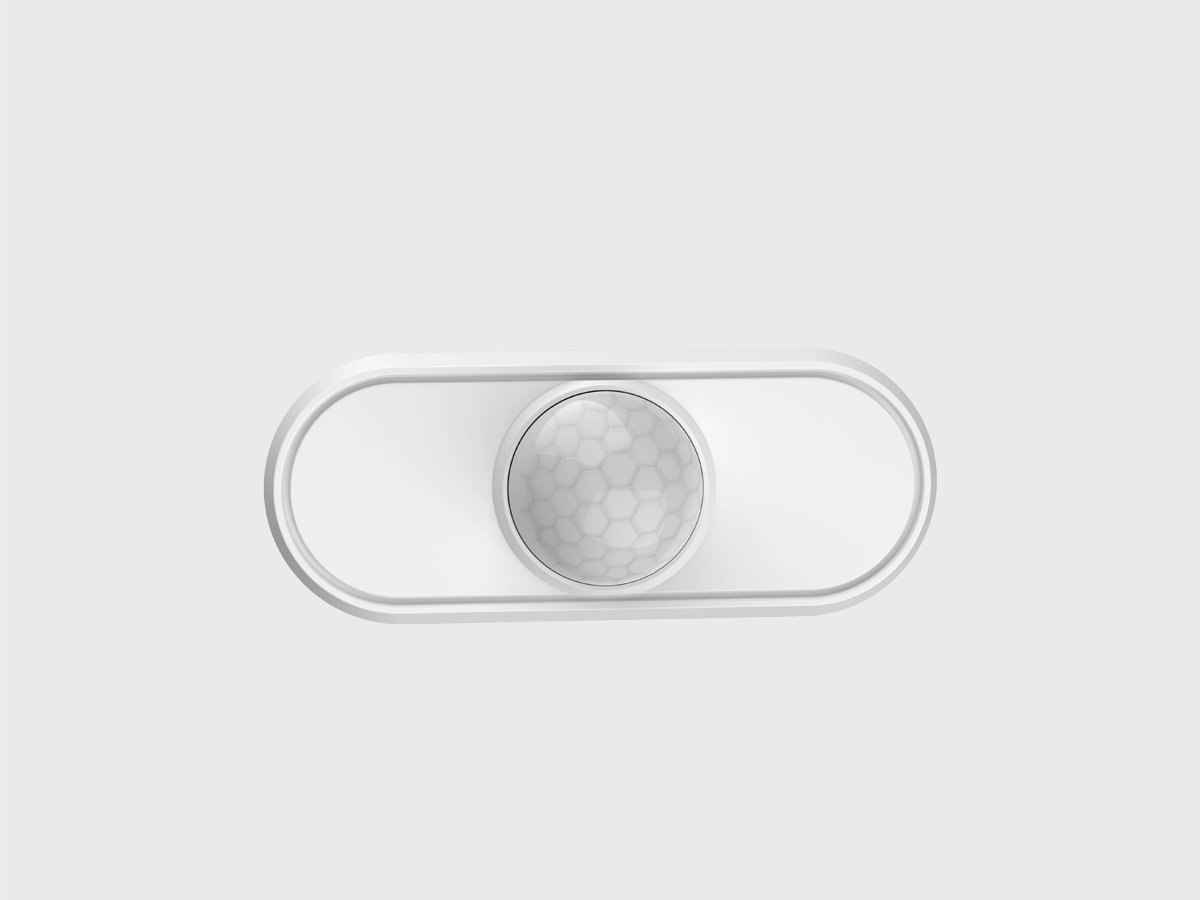

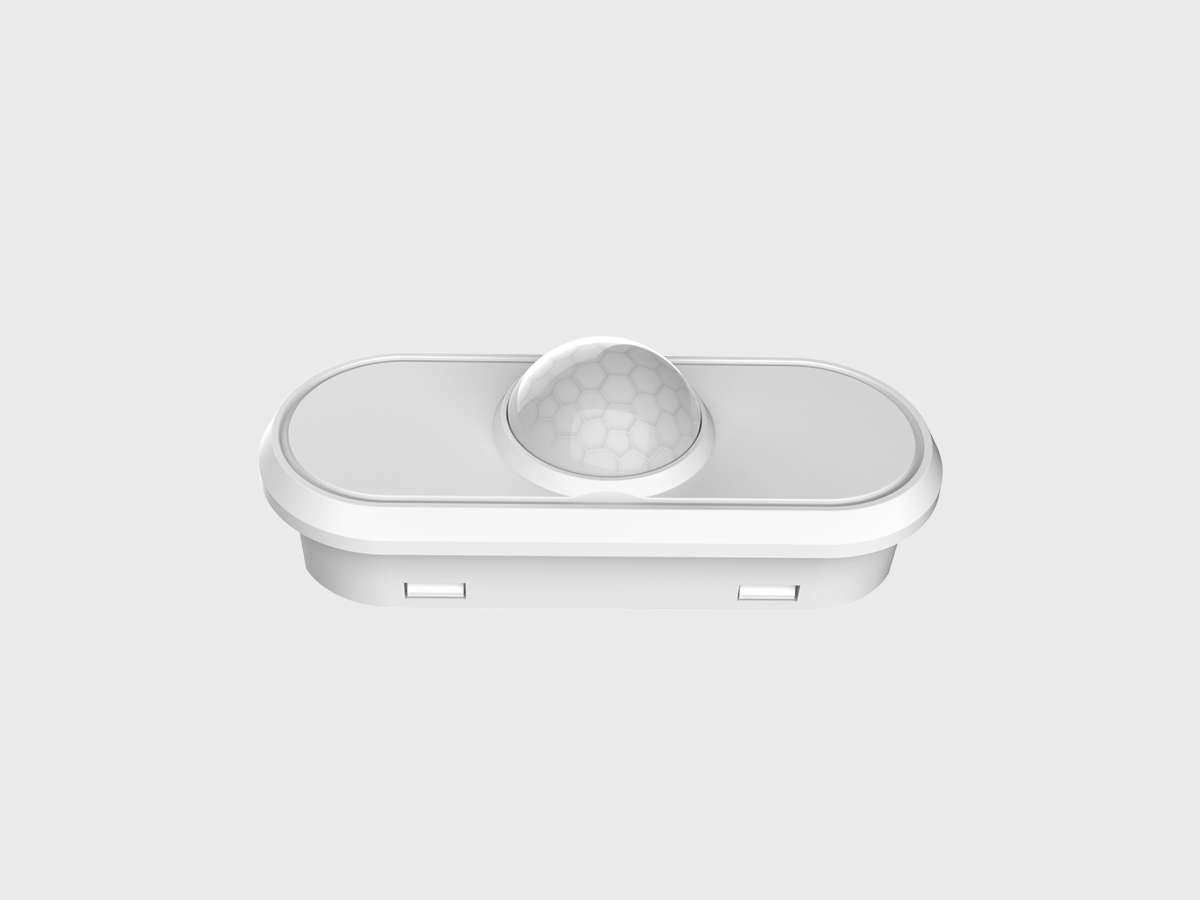

HSE-BSP2L-5

DESCRIPTION
The series is a low-voltage sensor engineered for seamless
luminaire integration, enabling Luminaire Level Lighting
Control (LLLC) functionality for panel, troffer, strip, wrap, and
select architectural lighting fxtures.This compact unit
combines daylight harresting and passive infrared (PIR)
occupancy sensing to transform luminaires into intelligent
lighting solutions.

FEATURES
• Bluetooth and regular version available;
• PWM dimming available
• Daylight Harvesting + PIR analog sensing technology
• Low-profle linear design with minimal height above luminaire
• 4-pin design enables color-tuning

Part Number	HSE-BSP2L-5
Component Type	Eco Sensor
Input Voltage	DC 10-15V
Input Current	<15mA
Stand-by Power	DC 10V@<0.5W
Control Method	DIM 0-10V
Warm-up Period	10S
Dimming	Class 2, 0-10V DC 10mA Max
Sinking Current	10mA Max
Bluetooth Transmit	25M / 170.60ft
Radio Frequency	2.4GHz (2402 ~ 2480MHz)
Bluetooth Version	5.2

Warm-up Period	10S
Detection Angle	Fresnel Lens（ Ceiling Mounted 360 ° Wall Mounted ≤120 °)
Mounting Height	<4M/13ft
Detection Range	Radius: 2-4m 6.56-13.12ft
Storage Temperature	-30°C to 85°C, -22°F to 185°F
IP Rating	IP20
